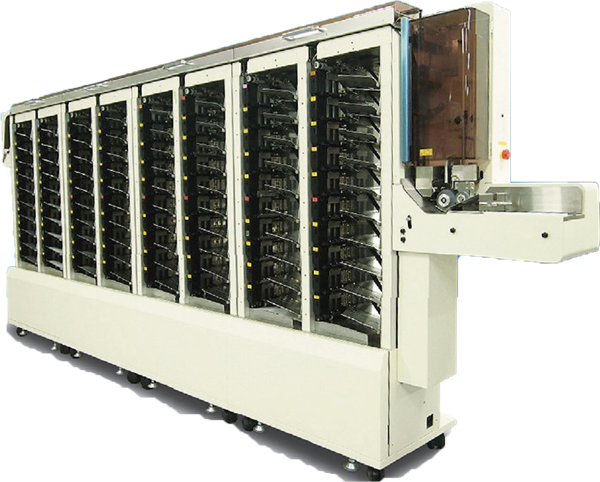

Optimal document transfer and high-speed processing , Official Document
Sorter , Space-saving design and dynamic extensibility
| Basic Specifications |
| Feed speed |
50 inches/second |
| Processing
speed |
300 sheets/minute (in the event of continuous
processing with 5-inch forms) |
| Transport |
| Number of
pockets |
20 (min.) to 100 (max.)
Expandable in 20 pockets/unit |
Auto-feeder
(Continuous additional stacking available) |
Hopper capacity/Approx. 800 sheets
(With 5-inch tax forms stored) |
Pocket
(Extractable during transport) |
Pocket capacity/Approx. 280 sheets
(With 5-inch tax forms stored) |
| Double
feed detection |
With ultrasonic sensors installed
Automatic ejection to pockets for rejected forms
(selectable) |
| Mixed form
processing |
Available |
| Transfer form standard |
| Size |
Width 75 mm to 155 mm,
length 83 mm to 230 mm |
| Thickness |
52.3 to 174.5 g/m2 |
| Paper
quality |
OCR paper, high-quality paper, plain paper, recycled paper |
| Barcode |
Recognizable code
(1D or 2D) |
1D/CODE39,ITF,NW7,JAN,EAN,CODE128
2D/QR |
|
Recognition area |
1D with ladder: Width 80 mm × Length form length minus 20 mm
1D with picket: Width 16 mm × Length 80 mm or less
2D: Width 30 mm × Length 50 mm |
| Installation Environment |
| Connection
Interface |
Serial RS232C |
| Power
supply specifications |
Single-phase: 100 V - 230 V, 50/60 Hz |
|
Temperature / Humidity |
Temperature: 16 °C to 26 °C, Humidity: 40% to 60% (non-dewing) |
|
Connection Unit |
|
Height(mm) |
Width (mm) |
Depth (mm) |
Weight (kg) |
|
Basic unit (20 pockets) |
1420 |
1170 |
450 |
115 |
Additional sorter unit
20 pockets/unit |
1420 |
700 |
450 |
90 |
| Option |
| Dual head
Barcode |
Up to 2 barcode readers
Combination: 1D + 2D (mixed), 1D × 2 or 2D × 2 |
| Ink jet
printer |
Type: Alphanumeric, symbol, single-byte kana
Position: Surface, Printing after recognizing barcode
Color: Black, red |
