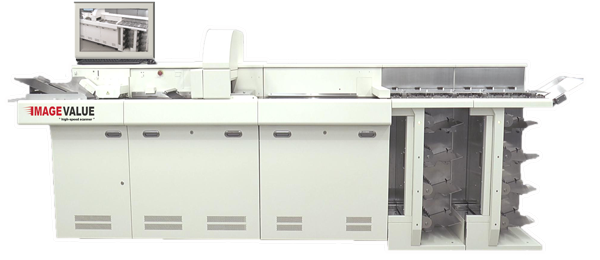

Image Value 20/300 MS Technical Specifications

IV 20/300 MS SORTER Video



ImageValue 20 Sorter options			Scan sorter model (Multi-pocket configuration)
			Straight sorter Model 300 IVSS300, IV20PSS/300	Straight sorter Model 450 IVSS450, IV20PSS/450	Straight sorter Model 600 IV20PSS/600
Basic configuration
Maximum processing speed: Output resolution *1 (A4 documents, at 3 inch intervals)			300 sheets/minute: 200 DPI  300 sheets/minute: 300 DPI	450 sheets/minute: 200 DPI  300 sheets/minute: 300 DPI	600 sheets/minute: 200 DPI 450 sheets/minute: 200 DPI  300 sheets/minute: 300 DPI
Document standard	Document thickness (ream weight) *2		11 lbs - 55 lbs	11 lbs- 48 lbs (450 sheets/min) 11 lbs - 55 lbs (300 sheets/min)	18 lbs - 48 lbs (600 sheets/min) 11 lbs - 48 lbs (450 sheets/min) 11 lbs - 55 lbs (300 sheets/min)
	Paper quality		OCR paper, high-quality paper, plain paper, recycled paper, pressure-sensitive paper *3
Image camera Basic configuration: Surface only	Camera specifications		Ultra-high-speed 300 DPI 24 bit RGB (each 256 gradient), high-resolution full-color camera
	Output resolution (Output format)		150 DPI - 600 DPI color (JPEG 24 bit), black-and-white binary (TIFF), gray (JPEG 8 bit)
Light source	Type		High-efficiency ultra-bright LED
Hopper	Capacity *4		1500 sheets (Continuous additional stacking supported)
Pocket	Mountable number of pockets		Sorter pockets: 3-24 (24 pocket configuration available for S size only) MS (multi-stacker) Number of pockets: 4 - 48		Sorter pockets: 3-24 (24 pocket configuration for only S size)
	Pocket size, and the number of pockets  Chosen during manufacturing		S pocket size: 15 cm × 3 M pocket size: 30 cm × 1 + 15 cm × 1 L pocket size: 45 cm × 1 MS pocket size: 30 cm × 4		S size 15 cm × 3 M size 30 cm × 1 + 15 cm × 1 L size 45 cm × 1
	Pocket capacity		S/M/L pockets: 1,000 sheets MS pockets: 500 sheets		S/M/L size pockets: 1000 sheets
Control PC	OS	Windows	Windows 7 Professional
	Interface	LAN connection specifications	TCP/IP 1 GB or more
API			Dedicated API and TWAIN drivers (scanner model) are available
Option
Rear side image camera (Specified at manufacturing)			Equivalent to the surface
Numbering (IJP) *7 Ink-jet type	Camera front *5	Surface	○	○	○
	Camera rear *6	Surface	○	○	○
		Back	○	○	○
Reading recognition function	Bar code	Software recognition	○
		Hardware recognition	○  (Fixed reading position )	(At 300 sheets/minute: Hardware recognition supported)	(At 300 sheets/minute: Hardware recognition supported)
	Character recognition *8	Software recognition	○
	MICR character recognition	Software recognition	○		-
		Hardware recognition	○
Equipment specifications
Dimensions (W × D × H) (mm)			3700 x 820 x 1365 (6 Pkt)	3700 x 820 x 1365 (6 Pkt)	3700 x 820 x 1365 (6 Pkt)
Weight [kg] *9			510 (6 Pkt)	510 (6 Pkt)	510 (6 Pkt)
Power Specifications (50/60Hz) (V)/(A)			Single-phase 200-240 V/30 A
Temperature/Humidity			16-35 ℃, 40 - 60%
Certification/Standards			nipa

◆ Product details are subject to change without prior notice. ◆ Product names and company names mentioned herein are registered trademarks or trademarks of Primagest. 　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　
* Note For the high-speed machine model (600 sheets/min), there is no corresponding settings for the sorter model.
The description in the functional specifications list includes our in-house performance tests. Some limitations may occur.
For equipment configuration such as features, specifications, options, etc., please contact us.
*1 The maximum number of units processed per minute occurs when A4 documents are fed short-side first, using the standard settings.
The number processed may be reduced depending on settings, other equipment configuration, paper quality, various document adjustments, image output size, etc.
*2 The shape of the body and the sorter sections, or the pocket specifications may be restricted depending on the paper quality and the size of the documents.
We recommend you check in advance.
*3 A test processing check is required for pressure-sensitive paper types, and recycled paper.
*4 When the document thickness is 55kg per 1000 A4 sheets.
*5 The modules printed before acquisition of an image. It is necessary to check the printing digits, the number of lines, and the character types in advance.
*6 The modules printed after acquisition of an image. It is necessary to check the printing digits, the number of lines, and the character types in advance. (Front/back alignments are available)
*7 For IJP (ink jet printer), the print quality may differ depending on the paper quality. However, printing on glossy paper is not supported.
The number of printing digits/rows must be checked in advance, because they may be limited depending on the setting of the character size and equipment.
*8 Please contact separately to inquire about types of recognized characters.
*9 PC and monitor are not included in the body. The sorter machine is calculated with 15 cm size pocket (Size will differ depending on pocket size and configuration).

Also,during mixed form processing, where the minimum document size plus 0.5 inches is less than the maximum document size divided by two, the document size check may not work properly. Please consult in advance
